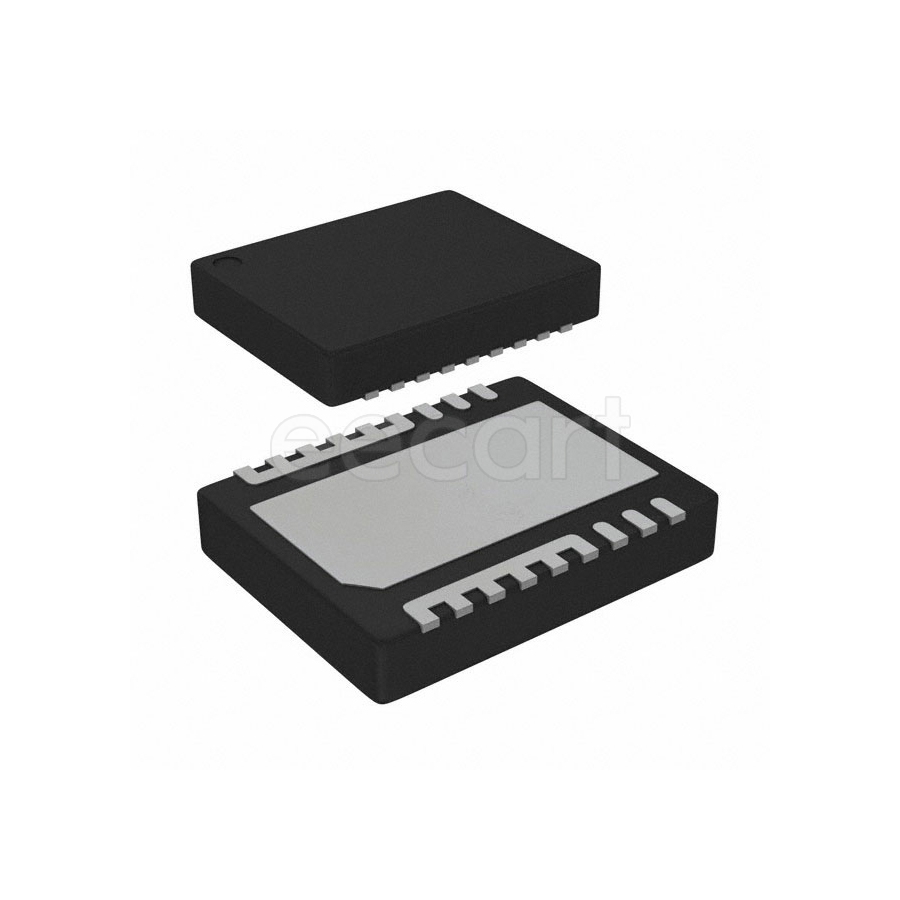

CSD97394Q4MT
Manufacturer:
Texas Instruments
Mfr.Part #:
CSD97394Q4MT
Datasheet:
Description:
Gate Drivers VSON-8 SMD/SMT Half-Bridge
| Parameter | Value |
|---|---|
| Length | 4.5 mm |
| Width | 3.5 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Thickness | 0.9 mm |
| REACH SVHC | No SVHC |
| Interface | PWM |
| Operating Supply Voltage | 5.5 V |
| Lifecycle Status | Active |
| Max Output Current | 45 A |
| Output Current per Channel | 20 A |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4.5 V |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Output Current | 20 A |
| RoHS | Compliant |
| Configuration | Half-Bridge |
| Packaging | Reel |
Stock: 2205
Distributors
pcbx
pcbxUnit Price$1.37045
Ext.Price$1.37045
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.37045 | $1.37045 |
| 10 | $1.00796 | $10.07960 |
| 25 | $0.91990 | $22.99750 |
| 50 | $0.86844 | $43.42200 |
| 100 | $0.81987 | $81.98700 |
| 300 | $0.76136 | $228.40800 |
| 500 | $0.70703 | $353.51500 |
| 1000 | $0.65744 | $657.44000 |
| 3000 | $0.64449 | $1933.47000 |
| 5000 | $0.63180 | $3159.00000 |
